HPC Charger, High Power Charging Station, High Power EV Charger

HPC High Power Charger

HPC charger(high power charging station)is a new and innovative solution to the growing demand for fast high current charging of next-generation electric vehicles(E-Bus and Luxury EVs).

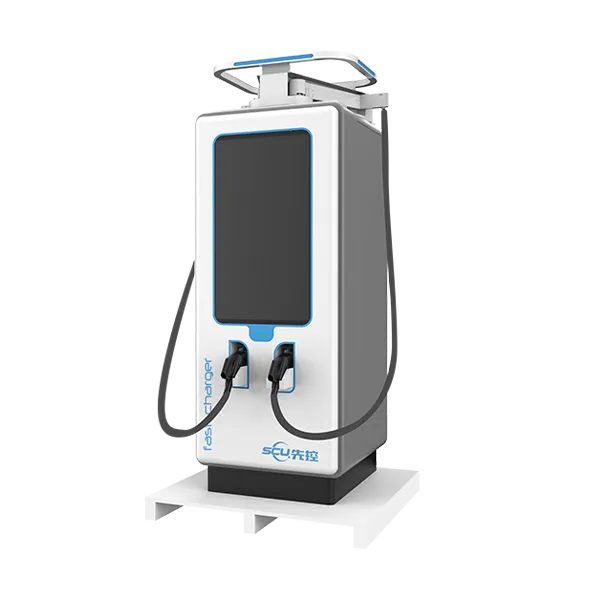

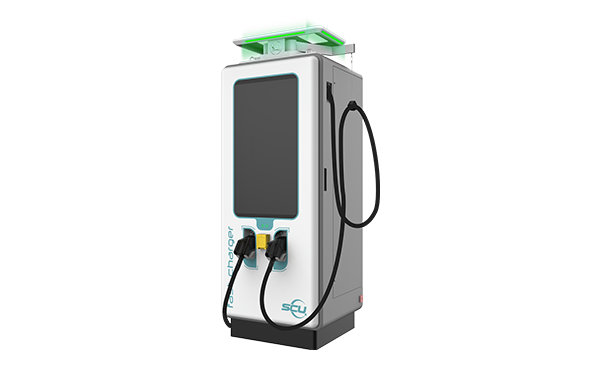

HPC Ultra-Fast High Power Charging Station 350kW

EVHS-350, High Power EV Charging Station is a new and innovative solution to the growing demand for fast high current charging of next-generation electric vehicles(E-Bus and Luxury EVs). EVHS-350 system adopts modular structure design and the most advanced ultra-fast high power charging technology. This kind of high power EV charger consists of one power unit and 2 charge posts.  It’s a high power charger that can charge any CCS Compatible eBus or eVehicles with 350kw, 500A max.


scu feature icon

Compatible car brands

BMW, Volkswagen, GM, Porsche, Audi, Peugeot, Citroen, Kia, Renault, Daimler, Mercedes, Jaguar

scu feature icon

High Power Charging Station Features

HPC charger supports CCS connector up to 500A liquid-cooled cables. It is a reliable, robust modular hardware. This fast charging EV station is simple, quick and easy to install. Daylight readable touch screen display RFID authorization.

scu feature icon

High Power Charger Application

Public operations such as highway rest stops, petrol stations, airport etc. Private operations such as EV dealers, EV fleets etc.

High Power Charging Station Types

HPC Power Unit

Configuration: one power unit + 2 charge post
Display: 10’’ TFT Color screen
Communication Protocols: OCPP 1.6J

HPC Dispenser 500A/outlet

HPC Dispenser 500A/outlet

High Power Charging Station Specifications

AC Input for the DC Output Power connection 3P + N + PE
Voltage range 400 Vac ± 20 %
Frequency 50 Hz or 60 Hz
Overall efficiency 95%
DC Output Voltage 150Vdc to 1000Vdc
Max Current 500A
Nominal Power 350kW
others DC-Interface CCS 2
RFID system ISO/IEC14443A/B, Mifare;  Optional: FeliCa™ 1, NFC reader mode, ISO/IEC15693, Calypso, Legic
Network connection  Standard configuration: LAN Interface; Support 2G/3G/4G/Wi-Fi modem
Communication Protocols OCPP 1.6J
Operating temperature  -35ºC-60ºC ( -20ºC to -30ºC, heating required)
Storage Temperature  -40 ºC to +70 ºC
Operating humidity ≤95% non-condensing
Protection degree IP54 , IK10
SCU High Power Charging System Installed at Bus Station

SCU high power fast chargers are ideal for guests staying from 10 minutes to one hour. After a quick stop and charge, ev-drivers can be on their way. SCU high power charging(HPC) deals with the fast charging technology, which currently provide the maximum charging power with up to 360 kW, it is ideal for fuel stations, meeting venues, a roadside restaurant and bus stations high power charging. Other EVs that need to be charged quickly. The ultra fast charger is compatible with any electric vehicle with a DC fast-charge option.
