EVSE | EV Charging Stack , Power Unit + Charge Post - scupower.com

EV charging stack

EVMS EV Charging Stack (Power Unit + Charge Post)

EVDS series(240 KW)

EVMS EV Charging Stack (Power Unit + Charge Post)

EVMS EV charging stack is a split-type charging system meeting multiple standards CCS, CHAdeMO, GB/T. Adopting modular design concept and forefront power electronic technology,consists of power stack, control units and charge posts.Both Indoor and Outdoor types available.

scu feature icon

Flexible design

Flexible multi-protocol designed: CCS, CHAdeMO, GB/T.
240KW outdoor type stack: 2, 4, 8 outlets, each output 0 ~ 60KW or 0 ~ 120KW;
360KW indoor type stack: 2 ~ 12 outlets, 30 ~ 180KW flexible output.

scu feature icon

Humanization design

12.1 inch LCD/LED screen to display information in real time, easy operation and humanized user interface;Support various online payment methods;

scu feature icon

Perfect function

High adaptability of temperature range, isolated heat dissipation air ducts;
High efficiency, high reliability, ultra low radiation, fast maintenance, flexible capacity expansion, energy efficiency and environmental protection.

EV charging stack types

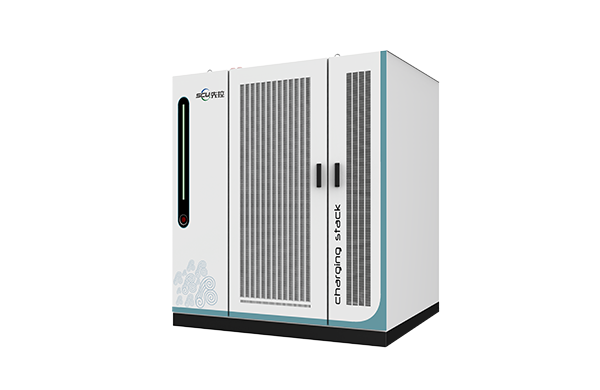

power unit of EV charging stack

EVMS-240 (power unit)

Use environment: outdoor
System capacity: 240KW
Maximum outlets: 8

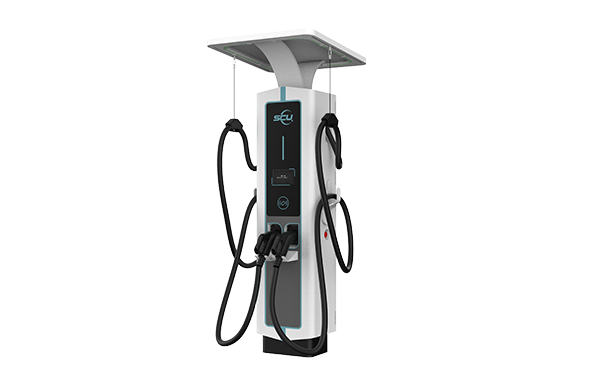

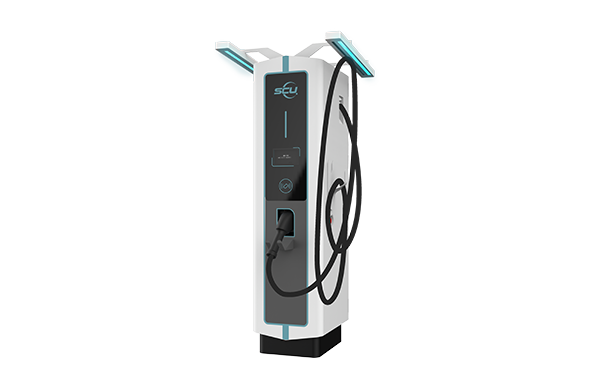

charge post of ev charging stack

EVMS-240 (charge post)

Protection degree: IP55
Dimension: 320*280*1740
Output capacity: 15~60KW or 0~120kw

Specifications of EV charging stack

Use environmentOutdoor
System capacity240KW
Maximum outlets8
Output capacity of each route15~60KW or 0~120kw
Input voltage400VAC±20%
Input voltage range260V~530V (260V~304VAC, output power derating 50%)
Power factor>0.99
Working frequency50/60HZ
Output voltage200VDC-500VDC/ 300VDC-750VDC/150VDC-1000VDC
Overall efficiency95%
BMS auxiliary power supply12V/10A
Communication interfaceEthernet, CAN/RS485, 3G/4G
Acoustic noise(dB)≤60dB
Protection degreeIP55
Dimension1300*750*1950(power stack)/320*280*1740(charge post)
DHL Logistics Vehicles achieves Zero Emission by SCU EV Charging Solution – EV Charging Stack + Charger Post

DHL has set a mission to achieve zero emissions by 2050. As a benchmark company in the global logistics industry, DHL has more stringent standards when selecting partners. In China, DHL chose to cooperate with Sicon Chat Union(SCU) to establish New Energy Logistics Electric Vehicle Charging Stations in Beijing, Shenzhen, Xiamen, and Zhejiang.

Learn more
