EV Charger Module Solution for DC fast ev charger- SCU

EV Charger Module Solution

SCU EV charger power module, with flexible, reliable and low-cost features, designed for DC fast EV charging station and bharat ev dc charger (bevc-dc001), which support to charge various car such as BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes, Jaguar, Bolt, Tata nexon.

EV charger power module for DC fast charging

One of the main requirements for the widespread use of electric vehicles is having an accessible EV charger infrastructure. Governments and industries worldwide are preparing to invest in EV charging infrastructures. The key points in the product decision are costs, power and reliability. SCU can provide you with more intelligent and efficient power module. Whether it is PFC level or DC / DC power level design, there is a better scheme to design efficient power module.

Excellent performance of ev charging module

Wide voltage range

Input voltage range 260vac ~ 530vac, Output voltage range 150-1000vdc, which can meet the high efficiency charging requirements of different models;

Thermal Design

Scientific and reasonable thermal design ensures that the temperature rise of key components is controlled in a safe and reasonable range;

Security

The protection level of the module is high, and it can run smoothly in high temperature, high humidity, dust and other harsh environment;

Digital control

The module adopts digital control technology, from input to output pure digital control, more stable operation, improve battery life;

High efficiency

THDI is less than 3%, the input power factor is as high as 0.99, and the efficiency is more than 96%;

Availibility

Parallel operation for high-power EV charger, hot swappable. Easy integration and maintenance.

Benefits of SCU DC charging module

Why choose SCU EV charger module?

Here, we want to introduce the internal power supply of EV charger: the function of EV charging module is to realize power conversion, which is equivalent to the “heart” of charging pile, and its cost accounts for about 40% of the whole charging pile.

Our Offer of DC EV charging module

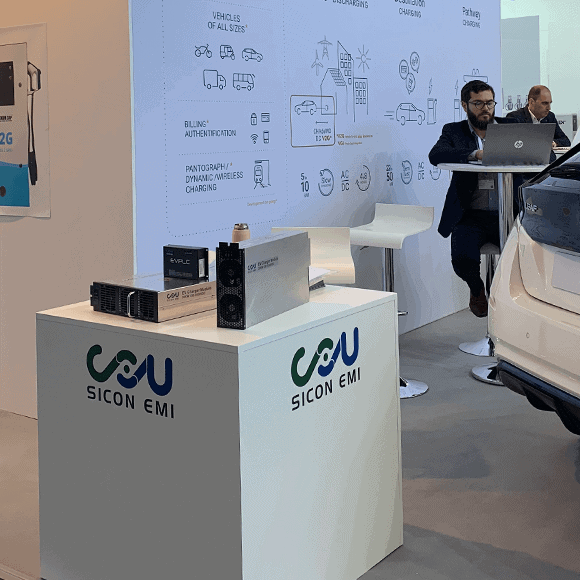

30kw ev charger module

30kw EV charging module

DPM-1000/30
Capacity:30kW
Output voltage range: 150-1000VDC
Constant power range: 300-500VDC&600-1000VDC

Learn More

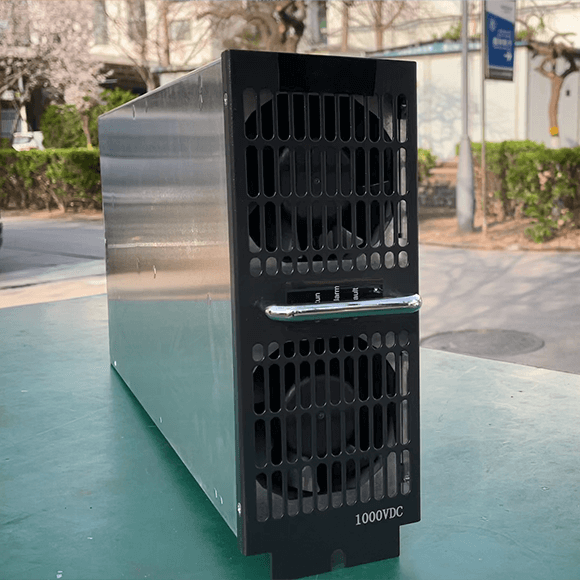

15kw EV charger module

15kw EV charging module

DPM-1000/16
Capacity: 15kW
Output voltage range: 150-1000VDC
Type: Constant Current

Learn More

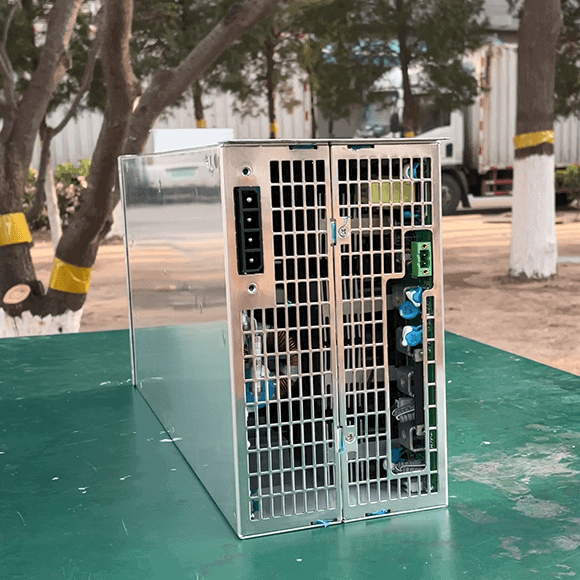

power module for bharat ev charger dc-001

bharat EV charging module (bevc-dc001)

DPM-750/40
Capacity:20kW
Output voltage range: 40-135VDC
Constant power range: 100-135VDC

Learn More

What type of EV charging station can the power module be used in?

Wall-mounted charger

If you want to install a home EV charger, wall-mounted charger is a good choice. There is a 30kw constant power module inside the charger. Constant power range is at 300-500VDC&600-1000VDC. Click it.

wall-mounted ev charger

DC fast EV charger

This is level 3 charging, means fast charging compared with AC charger. Support CCS and CHAdeMO standard electric vehicles. Two DC guns charge at the same time or in turn. The EV charger power is 60kw or 150kw. Click it.

60kw ev charger

EV charging stack

EV charging stack is a split-type charging system, consists of power unit and charge post, which can be used in outdoor environment. Max. 8 outlets. Application: Parking lots where multiple DC charging service required. Click it.

EV charging stack

SCU EV Charger installed at the Beijing Daxing Airport

Beijing Daxing International Airport covers an area of 1.4 million square meters, is with charging supporting facilities and renewable energy. SCU won the bid for the second phase of the EV charger project in the flight area of Daxing Airport and installed 70 units EV charger power stack and 160pcs charge post.

Learn more
SCU: Application of lithium-ion battery and UPS instead of diesel generator in Moscow

Commercial Building in Moscow, Russia was having the problems of covering large area, much fuel consumption, big noise and heavy pollution from the diesel generator. SCU provided energy storage batteries instead of diesel generators as a backup power for the building, which solved the noise and gas pollution problems of diesel generators. Moreover to make full use of the peak-to-valley price difference to save costs and bring more income on investment .

Learn more
SCU EV charger modules fascinate Top EV charging manufacturers of Europe

“Environmental, energy saving, green travel” has become a global consensus. In order to meet the era of green travel, SCU launched a new generation of high-power DC power modules, which can increase charging power, improve charging safety, and enhance user experience. They are sold to various European countries. Just Last year, sales amount reached more than 30,000 units.

Learn more
